Disc tool change cnc router machine

Details

►Disc tool change cnc router machine
Advantages of Disc tool change cnc router machine:
Small and compact, small footprint, easy to transport
1. The automatic tool changer cutting machine adopts a good combination of speed and precision of imported parts;
2. Straight row tool change cnc router machine, 8 tool magazines, fast tool change speed;
3. The oscillating knife can open and cut the fabric;

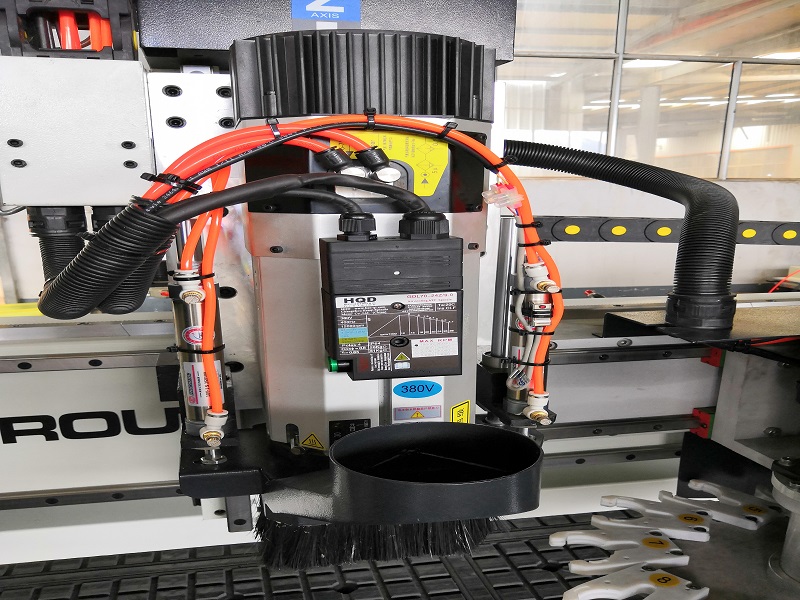

4. HSD spindle plus spindle pressing plate has the advantages of fast processing speed, good stability and high precision;
5. The system has good compatibility, which can realize optimized typesetting, processing and cutting, and processing of special shapes, and the utilization rate of plates can reach 95%;
6. Automatic lubrication, wireless tool setting instrument and other high automation, saving manpower, high production and processing efficiency;
7. The new-style generous square tube gantry structure has good long-term processing stability.

Parameters

Product name		Disc tool change cnc router machine
Effective stroke range/mm		25001260300
Working area/mm		24801230180mm

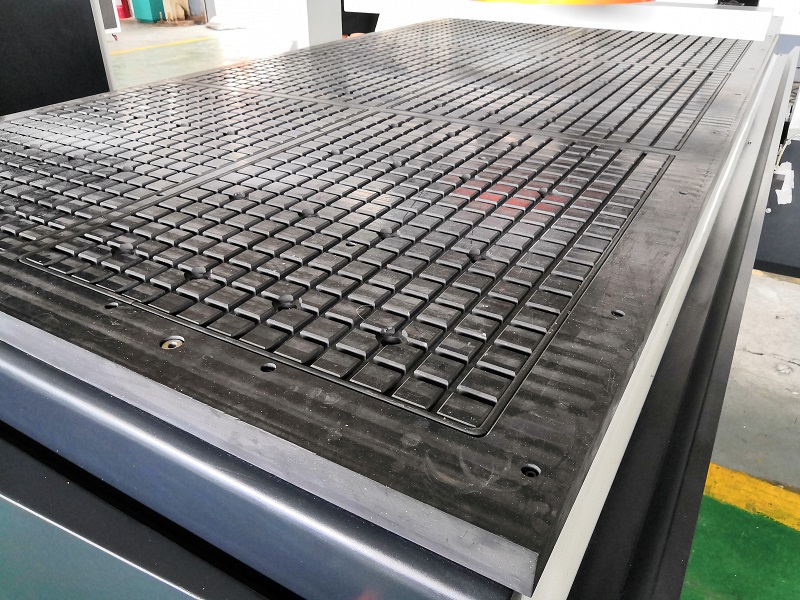

Table size/mm		2500*1230mm
Spindle speed	24000rpm/min
Spindle motor power	9kw
Fast moving speed	45m/min
Processing speed	20m/min
Rack	HIWIN
Rail	HIWIN
Tool magazine capacity	8/12/16
Driving system	YASKAWA

PS: can be customized according to customer needs;
