Hand-held welding machine

Details

►Hand-held welding machine

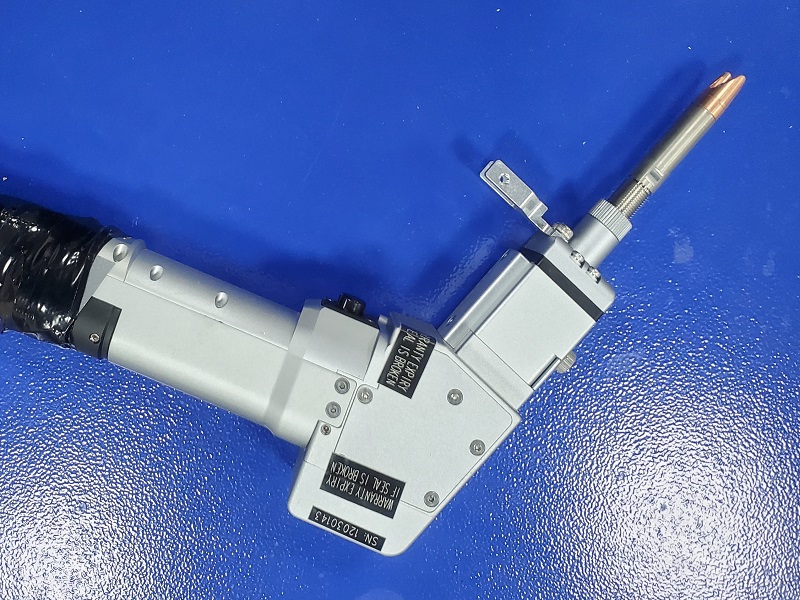

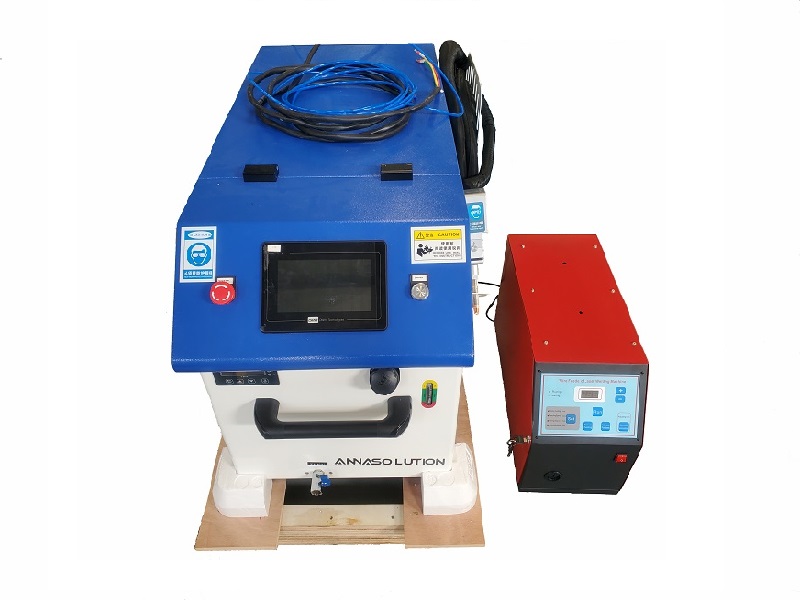

1: Small size, flexible and convenient One-piece design, laser, water tank, and control together, convenient and flexible. Hand-held welding torch, with optional 3m, 5m, 8m transmission fiber, suitable for all kinds of complex welding seams, and can weld any part of the workpiece and any angle.
2: The welding seam is firm and the welding quality is good Continuous laser mode, smooth welding seam transition and firm welding seam; The welding heat-affected zone is small, and the overall deformation of the workpiece is small; The weld surface has a small stacking height, and no secondary grinding treatment is required.
3: Low maintenance cost The electro-optical conversion efficiency of continuous laser is as high as 30%.

Parameters

Product name		Hand-held welding machine
Interface type		QBH
Power range		2000W
Laser wavelength		1064-1080nm
Spot adjustment	(0.2-5) mm
Collimation focal length	50mm
Focus focal length	150mm
Protective lens	D20X2mm
Cooling method	water cooling
Tip weight	0.9KG
Mode selection	point-line-circle-double 0-triangle-8 words

PS: can be customized according to customer needs;
